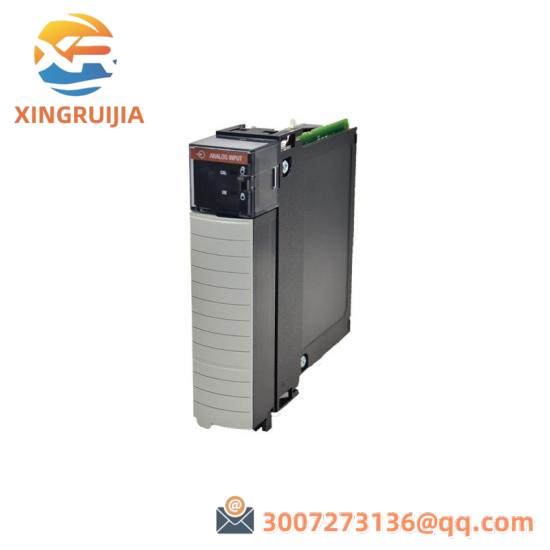

Allen-Bradley 1756-IF16 Analog Input Module

Model Type:Analog Input Module

Manufacturer:Allen-Bradley

Model Number:1756IF16

Quantity per Channel:16 Points

Input Channels:Single-ended or Differential

Supported Inputs:8 Differential or 4 High Speed Differential

Signal Compatibility:Current and Voltage

Operating Voltage Range:220 V

Operating Frequency:Up to 30 kHz

Communication Interface:ControlNet Bridge

Dimensions (WxHxD):5.7 x 3.7 x 1.5 inches

Weight:0.6 lbs

Temperature Range:-40°C to 70°C

Humidity Range:5% to 95% non-condensing

    The Allen-Bradley 1756-IF16 Analog Input Module is specifically designed to enhance the efficiency of ControlLogix-based industrial automation systems. Its seamless integration with ControlNet ensures reliable data transmission and improved system performance.

    With its versatile input capacity, this module can accommodate a variety of applications requiring precise analog signal acquisition. Whether it’s single-ended inputs for standard signals or differential inputs for high-speed, high-precision measurements, the 1756-IF16 provides unparalleled flexibility.

    Engineered for durability and reliability, this module features a robust design capable of withstanding harsh industrial environments. Its DC voltage range of 12 to 24 V makes it suitable for a wide range of applications, ensuring compatibility across different systems.

    For easy installation and maintenance, the module utilizes a standard DB9 female connector, simplifying connection to the ControlNet network. Its compact dimensions of 1.8 x 3.2 x 1.2 inches and lightweight structure of 0.3 lbs make it an ideal choice for space-constrained applications without compromising on functionality.

    Experience the benefits of Allen-Bradley’s 1756-IF16 Analog Input Module in your automation projects today, and witness improved system responsiveness, enhanced data accuracy, and streamlined integration processes.
