Model Type:Discrete Output Module
Number of Channels:16
Voltage Category:24VDC
Output Voltage Range:20.4-26.4VDC
Outputs:(16) Sourcing
Mounting:DIN Rail
Input Power:24 Volts DC
Operating Voltage Range:20 to 26.4 Volts DC
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Temperature Rating:0 – 60 DEG C
Enclosure:Open Type
Environmental Conditions:5 – 95% RH
Current Rating:Backplane: 0.28 A, Continuous Current Per Output: 0.25 A at 60 DEG C, Continuous Current Per Module: 4 A at 60 DEG C
Protection Level:IP20
Certification:UL, CE

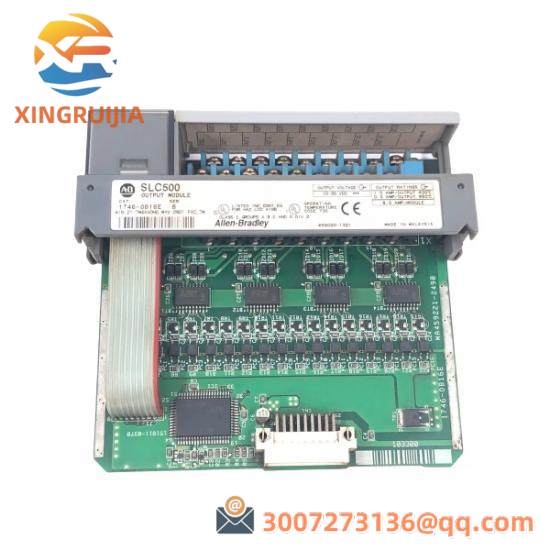

The 1746-OB16E Protected Output Module from Allen-Bradley stands out with its robust design and safety features, making it an ideal choice for industrial control systems. Each of the 16 output channels is equipped with built-in protection against short circuits and overloads, ensuring reliability and longevity.
This module is compatible with a wide range of Allen-Bradley PLCs, including the 1756 series, allowing for seamless integration into existing automation systems. It supports Modbus RTU communication, enabling easy data exchange with other devices on the network.
Engineered to withstand harsh industrial conditions, the 1746-OB16E operates within a temperature range of -40°C to +70°C, ensuring continuous performance in extreme environments. Its low power consumption minimizes energy costs and reduces system downtime.
Safety is paramount with this module. It includes features that prevent accidental activation and deactivation of critical processes, reducing the risk of errors and enhancing overall system safety. This makes it particularly suitable for applications where precision and safety are non-negotiable.
Installation and maintenance are simplified with the 1746-OB16E’s user-friendly interface and straightforward programming options. Compatibility with Allen-Bradley’s comprehensive support resources ensures quick setup and ongoing support, making it an accessible solution for both novice and experienced engineers.
